GBC

GBC

1000W Metal Halide, Diffuser Balloon Light, Cart Mounted w/3-stage mast assembly

The model GBC represents a high quality mobile 1000W Metal Halide diffused balloon lighting solution. The unit requires very little power requirements, and provides exceptional 360º shadow-free lighting that supports security, special events, construction and emergency response applications. The spherical projection of shadow-free lighting extends outward to over 150'.

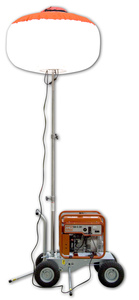

Supported by a compact industrial zinc-plated steel cart w/3-stage air assisted mast assembly, this highly mobile sets up in minutes. The balloon bag material and strength of cart/mast assembly enable the GBW to withstand harsh weather conditions. (unit shown with optional portable generator)

  • Steerable cart design for easy transportation - sets up without tools; easy to maneuver.
  • Safely supports the addition portable generators for off-site operations.
  • Quick restrike time - @ 10 minutes.
  • Universally adaptable to all AC power supplies - accepts 50/60Hz, 115V.
  • Cart and 3-stage mast - extends up to 11'.
  • Cart provides three outriggers for safe unit stabilization.
  • Small compact footprint makes it easy to transport.
  • System can be broken down and positioned in the bed of a truck.
  • All terrain designed tires.
  • Light coverage up to 150 feet.




Unit Specifications
Required Generator Sizing 1200 W
Voltage 115 V
Amps 9.3 @ 115V A
Frequency 50-60 Hz
Lamp Type One 1000W Metal Halide frosted bulb
Total Luminous Flux 107,000 lm
Outriggers 3 Stowable outriggers
Notice: Features and equipment specifications are subject to change without notice.
