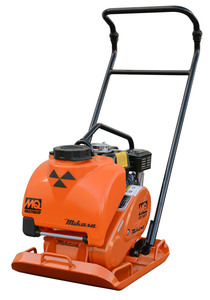

MVC82VHW

MVC82VHW

3080 lb. cf, Honda GX 160, 17.7 in. plate, water tank
Recognized as the industry standard for compacting granular soils and asphalt.
  • Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
  • Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
  • Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
  • Solid, high-strenght steel base plate for durability.
  • Tubular steel roll bar protects engine components and provides central lifting point.
  • Sealed belt cover keeps dirt and rocks out extending belt life.
  • Open base plate design makes for easier removal of dirt and rock build-up.
  • Cog-tooth belt drive enables longer life compared to conventional V-belts.
  • Front mounted exciter assembly allows for easy service access.
  • Removable, tool-free water tank can easily be refilled to 11.5 quart capacity.

MQ Mikasa Plate Compactors Overview

Watch this video to learn more about our industry-leading MQ Mikasa forward plate compactors, including important safety guidelines, a pre-operation checklist, and operating tips.

Watch Video




Unit Specifications
Centrifugal Force 3080 lbf 13.7 kN
Exciter Speed 5600 VPM
Plate Size 17.7 x 22.4 in
450 x 570 mm
Max Forward Speed
Per Min.
72 ft 22 m
Fuel Consumption
Per Hour
0.31 gal 1.17 L
Water Tank Capacity 11.5 qt 10.88 L
Dimensions & Weights
Overall Length 36 in 914 mm
Overall Width 17.7 in 450 mm
Overall Height 39.5 in 1003 mm
Shipping Dimensions 33.5 x 18.5 x 27 in
851 x 470 x 686 mm
Operating Weight 198 lb 90 kg
Shipping Weight 200 lb 91 kg
Notice: Features and equipment specifications are subject to change without notice.
