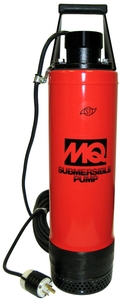

ST3020BCUL

ST3020BCUL

3 Inch Discharge, 230V 1Ø, 2.0 HP, 170 GPM, 72 ft Total Head
This compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST3020BCUL incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, carrying handle, and molded 50’ Power Cable with strain relief.

  • 2.0HP, 230V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 3” (NPT) Male Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 50’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/2” Levels.




Unit Specifications
Impeller Type Cast-Ductile-Iron
Impeller Disc Size 3 in 75 mm
Total Head 72 ft 22 m
Water Capacity 170 gpm 644 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 2 HP 1.5 kW
Phase Single
Voltage 230 V
Starting Amperage 52 A
Running Amperage 10.5 A
Cable Length 50 ft 15.2 m
Dimensions & Weights
Pump Diameter 6.7 in 170 mm
Overall Height 28.5 in 724 mm
Operating Weight 67 lb 30 kg
Notice: Features and equipment specifications are subject to change without notice.
