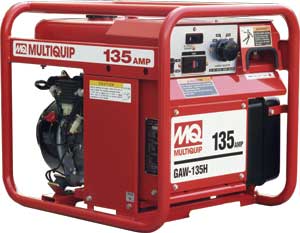

GAW135H
Multiquip's 135-amp welder is compact so that it easily fits on your service truck. The permanent magnet design lightens the weight of the welder while maintaining the quality output contractors demand.
- 135 amps of DC welding power, 1.5kW AC output
- Dry weight of only 114 pounds (52 kg)
- Honda GX200 gasoline engine
- Up to 45% lighter than other welders in its class
- Can be mounted to service trucks or on high reach baskets
- Ideal for a wide variety of utility welding applications
| DC Voltage | CC: 25.2 V | |
| DC Current | CC: 135A | |
| Current Range | 40-135 A | |
| Max Duty Cycle w/ Full Amps Availible |
40% @135 A | |
| Welding Processes | SMAW FCAW GTAW ACAC |
|
| Fuel Tank Capacity | 1.6 gal | 7.3 L |
| Fuel Consumption at Rated Load |
0.46 gph | |
| AC Power Output (Single Phase) |
1.5 kW | |
| Cycle | 60 Hz | |
| Voltage | 120 V | |
| Amperage | 12.5 A | |
| Voltage Regulation | 3 % | |
| Receptacles | NEMA 5-20R 125V GFCI 20A | |
| Overall Length | 21.75 in | 55.25 mm |
| Overall Width | 17.75 in | 45.1 mm |
| Overall Height | 19 in | 48.26 mm |
| Shipping Dimensions |
22.5 x 19 x 20.5 in 57.2 x 48.25 x 52 mm |
|
| Operating Weight | 114 lb | 52 kg |
| Shipping Weight | 119 lb | 54 kg |
| Engine Make/Model | Honda GX-200 | |
| Start Method | Recoil | |
| Engine Power | 5.5 HP | 4.1 kW |
| Engine RPM | 3600 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
