JWN24HTCSL

JWN24HTCSL

24-HP, Honda GX690, 6' Non-overlap, twin four blade rotors

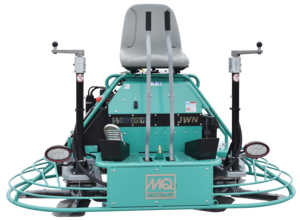

The JWN is a non-overlapping twin rotor 36-inch (914mm) ride-on trowel. Features like a constantly variable transmission, twin pitch control and a durable GX690 Honda engine will enable this model to deliver years of trouble free service.



             Drive system

  • Equipped with a GX690,24HP,Honda V-Twin gasoline engine and construction grade driveline that enables rotor speed ranges from 40-180 rpm
  • Variable transmission continuously adjusts the drive ratio to obtain optimum torque and rotor speed
  • Fan-cooled high capacity gearboxes extend service life

              Design

  • Entry level trowels offer increased value at an affordable price
  • Non-overlapping blades can be used with float pans
  • Spider assemblies feature long lasting wear plates and spider hubs and can be economically rebuilt. Standard model comes with 4 blade configuration

              Operating controls

  • Patented steering assist makes controlling the machine remarkably easy and reduces operator fatigue
  • Retardant spray system and LED lights




Unit Specifications
Engine Honda GX 690 Gasoline, 22.1 HP
Engine Cooling Air
Blades per Rotor 4
Rotor RPM 0-180
Path Width 75 in 1905 mm
Fuel Tank Capacity 5 gal 18.9 L
Run Time 1.71 gal/hr
Dimensions & Weights
Overall Length 77 in 1955 mm
Overall Width 39 in 990 mm
Overall Height 50 in 1270 mm
Operating Weight 741 lb 336 kg
Shipping Weight 960 lb 435 kg
Notice: Features and equipment specifications are subject to change without notice.
