MB25A

MB25A

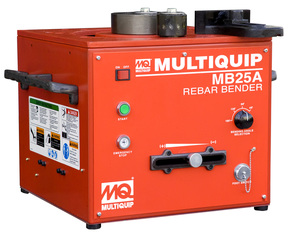

Portable rebar bender, bench type, 1" bar capacity, 115V
This compact rebar bender is ideal for both high-production workshops or job sites.
  • Bends rebar up to 1-inch (25 mm), up to 180 degrees diameter in seconds
  • Angle adjustment knob allows fine tuning of bending angle
  • Standard foot switch provides the operator the ability to free up hands for safe material handling
  • Driven by a 115-Volt, single-phase electric motor @ 13 amps
  • A complete set of rollers and collars is included to quickly change your bending radius
  • Two built-in lifting handles are provided for easy movement around the job site




Unit Specifications
Max. Rebar Diameter 1 in 25.4 mm
Bending Range 0 to 180
Max. Bending Speed 180° - Approx. 5 sec
Electric Motor 115V, 60 Hz, 1Ø, AC
Bending Radius Specifications
No. 3 Rebar Diameter 3/8 in 9.5 mm
Radius 2.25 in 57 mm
No. 4 Rebar Diameter 1/2 in 12.7 mm
Radius 3 in 76 mm
No. 5 Rebar Diameter 5/8 in 15.9 mm
Radius 3.75 in 95 mm
No. 6 Rebar Diameter 3/4 in 19 mm
Radius 4.5 in 114 mm
No. 7 Rebar Diameter 7/8 in 22.2 mm
Radius 5.25 in 133 mm
No. 8 Rebar Diameter 1 in 25.4 mm
Radius 6 in 152.4 mm
Accessories
Standard Accessories Foot Switch
Rollers (5 sizes)
Collars (6 sizes)
Tool Kit
Waterproof Cover
Dimensions & Weights
Overall Length 21 in 530 mm
Overall Width 19.5 in 500 mm
Overall Height 17 in 430 mm
Operating Weight 227 lb 103 kg
Shipping Weight 331 lb 150 kg
Notice: Features and equipment specifications are subject to change without notice.
