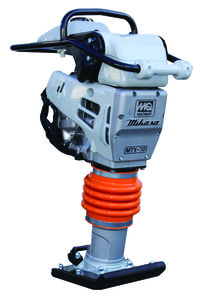

MTX70HD

MTX70HD

Honda GX100 Engine, 3,350 lb impact force, 11.2 in shoe
Multiquip's Mikasa MTX70HD is our most popular selling rammer – new and improved! This middle-weight compactor is ideal for confined area compaction and is exceptionally well balanced. Now with a redesigned fuel-tank that meets new EPA standards and features an integrated tachometer/hour meter.

MTX-Series rammers are renowned for performance and ease of operation.
The MTX-Series includes the features most preferred by contractors such as:

  • Cyclonic air cleaners that capture 98% of airborne dust particles
  • Long-lasting laminated wood and steel shoe
  • Low vibration handles for operator comfort
  • Combination hour meter/tachometer
  • Durable guards to protect the engine from damage
  • Redesigned fuel tank to meet EPA standards for evaporative emmissions

MQ Mikasa Rammer Operation Overview Video

Watch this video to learn everything you need to know about our industry-leading tamping rammers, including important safety guidelines, a pre-operation checklist, and operating tips

Watch Video




Unit Specifications
Blows Per Min. Up to 690*
Impact Force 3,350 lbf 1520 kgf
Shoe Jump Height 3.1 in 79 mm
Shoe Dimensions (LxW) 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. 55.8 ft 17 m
Fuel Tank Capacity 2.7 qt 2.5 L
Dimensions & Weights
Overall Length 31.0 in 788 mm
Overall Width 13.8 in 350 mm
Overall Height 40.4 in 1027 mm
Operating Weight 165 lb 75 kg
Engine Specifications
Engine Make/Model Honda GX100
Start Method Recoil
Engine Power 2.8 HP 2.1 kW
Engine RPM 4,100
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
