ST2010TCUL

ST2010TCUL

2 Inch Discharge, 115V 1Ø, 1.0 HP, 95 GPM. 45 ft Total Head

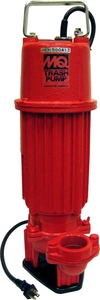

This compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller tackles tough dewatering applications and heavy usage operations. Further, the ST2010TCUL incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 50’ Power Cable with strain relief.

  • 1.0HP, 115V/6.8A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge.
  • Total Head: 45 ft.
  • MAX Capacity: 95 gpm.

  • Pumps Liquid Up To 120° F.
  • Heavy-duty Cast Iron Housing construction.
  • Dewaters Flat Surfaces Up To 2” Levels.









Unit Specifications
Impeller Type Neoprene Rubber over
Cast-Iron
Impeller Disc Size 2 in 51 mm
Total Head 40 ft 12.2 m
Water Capacity 79 gpm 299 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 1 HP 0.75 kW
Phase Single
Voltage 115 V
Starting Amperage 30 A
Running Amperage 6.8 A
Cable Length 25 ft 7.6 m
Dimensions & Weights
Pump Diameter 10.3 in 262 mm
Overall Height 24.5 in 622 mm
Operating Weight 77 lb 35 kg
Notice: Features and equipment specifications are subject to change without notice.
