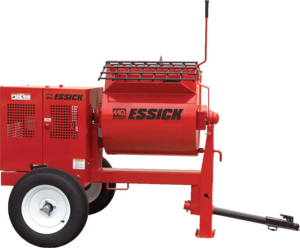

EM70SH5

EM70SH5

7cf Mortar, Honda GX160
It's no surprise that contractors, rental operators and other construction professionals rely on our mixers for their continued success.
  • Mixes 7 cubic feet (193 liters) of material
  • Powered by reliable 5.5-hp Honda gasoline engine
  • Heavy-duty tubular steel frame
  • Large13-inch (330 mm) tires for smooth towing




Unit Specifications
Drive System V-belt
Drum Capacity 7 cu. ft
198.2 L
1 1/2 - 2 1/2 bags
Dump Type Manual
Discharge Height 21 in 530 mm
Drum Type Steel
Drum Thickness 10
Engine Cover Thickness 14
Tire Size B78x13
Frame Type Tubular
Paint Type Powder coat
Power Source Honda 5.5 HP Model GX160
Dimensions & Weights
Overall Length 98 in 2489 mm
Overall Width 50 in 1270 mm
Overall Height 55 in 1397 mm
Overall Height
w/Dump Handle
73 in 1850 mm
Operating Weight 690 lb 312.9 kg
Engine Specifications
Engine Make/Model Honda GX-160
Start Method Recoil
Engine Power 4.8 HP 3.6 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
