EM90SH8

EM90SH8

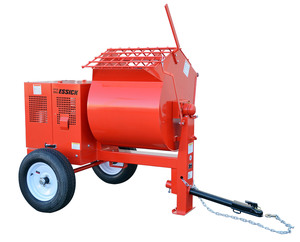

9cf Mortar, Honda GX240
Construction professionals who don't take their jobs lightly turn to Essick's 9-cubic foot (248 liters) steel-drum plaster/mortar mixers to get the job done right the first time.
  • Low maintenance with an innovative shaft seal system that requires no greasing
  • Heavy-duty drum is built to last
  • Reliable 8-hp Honda gasoline engine
  • Rugged 14-gauge steel engine cover with punched ventilation openings for increased cooling
  • High tensile strength cast paddle arms
  • Powder coat paint with durable finish




Unit Specifications
Drive System V-belt
Drum Capacity 9 cu. ft
254.9 L
2 1/2 - 3 1/2 bags
Dump Type Manual
Discharge Height 21 in 530 mm
Drum Type Steel
Drum Thickness 10
Engine Cover Thickness 14
Tire Size B78x13
Frame Type Tubular
Paint Type Powder coat
Power Source Honda GX240KIHA2
Dimensions & Weights
Overall Length 98 in 2489 mm
Overall Width 50 in 1270 mm
Overall Height 59 in 1498.6 mm
Overall Height
w/Dump Handle
77 in 1960 mm
Operating Weight 770 lb 349.2 kg
Engine Specifications
Engine Make/Model Honda GX-240
Start Method Recoil
Engine Power 7.1 HP 5.3 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
