MP1H

MP1H

14" Blade Guard, Honda GX 160
Shown with optional Diamond Blade

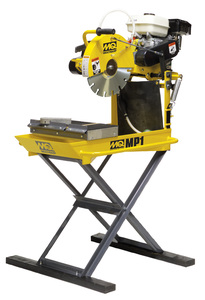

The Masonry Pro Saw MP1 Series combines portability and performance in one compact package. This saw is designed for vigorous masonry cutting operations. Reinforced, jig-welded steel frame construction provides rigidity for cutting accuracy and long service life. Powered by a trusted HONDA GX160 Gasoline Engine.

  • Powerful HONDA GX160 Gasolie Engine w/Cyclone Air Filtration
  • Reinforced, jig-welded steel frame minimizes vibration and assures accurate cutting
  • Rugged aluminum conveyor cart for optimum stability, travel
  • Open back design permits orientation for cutting large materials
  • Balanced easy-tilt cutting head gives operator relief in high tempo operations
  • Mounted carrying handles for easy transport
  • Stay-level blade guard for operator safety
  • High flow centrifugal water pump included
  • Cutting jig included
  • Optional support stand available (TRAK14SS)




Unit Specifications
Power Source 4.8 HP Honda Gas w/Cyclone Air Filter
Blade Capacity 14 in 356 mm
Cutting Depth 5 in 127 mm
Dimensions & Weights
Overall Length 43 in 1092 mm
Overall Width 33 in 838 mm
Overall Height 27 in 686 mm
Operating Weight 256 lb 116 kg
Notice: Features and equipment specifications are subject to change without notice.
