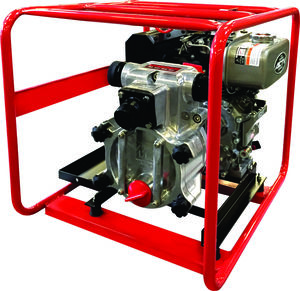

QP2TZ
Compact, stronger aluminum die cast pump casing for faster priming at higher speeds. True one-person operation for a diesel-powered water pump. Possesses many of the same pump features as its gasoline counterpart. Dependable Subaru-Hatz engines with recoil start, automatic decompression are also standard.
- Compact and portable design..
- Rugged 4.6HP Subaru/Hatz 1B20 diesel engine.
- Pumps water with solid content as large as 2-inch (51 mm) in diameter.
- Maximum Head – 95 ft (29 meters).
- Can pump up to 198 gallons (750 liters) per minute.
- Dual 2-inch discharge ports to adapt to different applications.
- Silicon/silicon mechanical seal for durability.
- Large cleanout cover removes in seconds without tools.
- Tubular Steel frame for transportation and pump protection.
- Cast Iron impeller and volute for abrasion resistance/long life.
- Aluminum body with cast-iron fittings.
| Suction x Discharge |
2 x 2 in 51 x 51 mm |
|
| Max. Water Capacity | 198 gpm | 750 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 95 ft | 29 m |
| Max. Pressure | 41.1 psi | 283 kPA |
| Max. Solid Intake | 1 in | 25 mm |
| Fuel Tank Capacity | 0.8 gal | 3 L |
| Optional Wheel Kit | UWKA | |
| Overall Length | 26.5 in | 673.1 mm |
| Overall Width | 18.3 in | 464.8 mm |
| Overall Height | 23.2 in | 589.3 mm |
| Operating Weight | 131 lb | 60 kg |
Notice: Features and equipment specifications are subject to change without notice.
