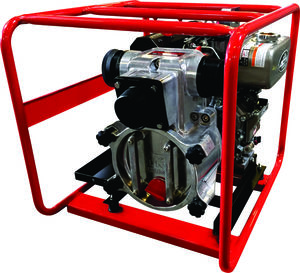

3" Suction/Discharge, Diesel Trash Pump, 325 GPM, 85 ft. MAX Head; 6.0 HP KUBOTA OC-60-E4

Dependable industrial 3" centrifugal trash pump that is the professional’s choice for the toughest dewatering applications. Capable of moving 1.5" spherical solids, this pump provides the signature Multiquip die-cast aluminum pump-end casings and high quality internal components provide the fastest priming times and trusted operational life. The pump is powered by an electric start, KUBOTA OC60-E4 diesel engine that provides EPA/CARB compliance design. This pump is the ideal choice for dewatering operations such as: excavations, flood waters, sewage by-pass, water transfer, and barge cleaning.



  • Die-cast aluminum casings to promote fast priming times.
  • Rugged, EPA/CARB Certified 6.0HP KUBOTA diesel engine.
  • Electric start for operating convenience.
  • Engineered for 325 GPM flow rate.
  • Maximum Head - 85'.
  • Pumps water with solid content as large as 1.5" in diameter.
  • Dual 3" discharge ports for operational and application flexibility.
  • Silicon/carbon mechanical seal for durability.
  • Large clean-out chamber design for efficient.
  • Tubular Steel frame for transportation and pump protection.
  • #45 Ductile iron impeller and volute for abrasion resistance/long life.
  • Shock mounted pump design to minimize operating harmonics.




Unit Specifications
Suction x Discharge 3 x 3 in
76 x 76 mm
Max. Water Capacity 325 gpm 1450 lpm
Max. Lift 25 ft 7.6 m
Max. Head 85 ft 27 m
Max. Pressure 37.7 psi 268 kPA
Max. Solid Intake 1.5 in 37 mm
Fuel Tank Capacity 1.45 Gal 5 L
Optional Wheel Kit UWKA
Dimensions & Weights
Overall Length 27.0 in 686 mm
Overall Width 23.5 in 597 mm
Overall Height 24.0 in 610 mm
Operating Weight 176 lb 80 kg
Notice: Features and equipment specifications are subject to change without notice.
