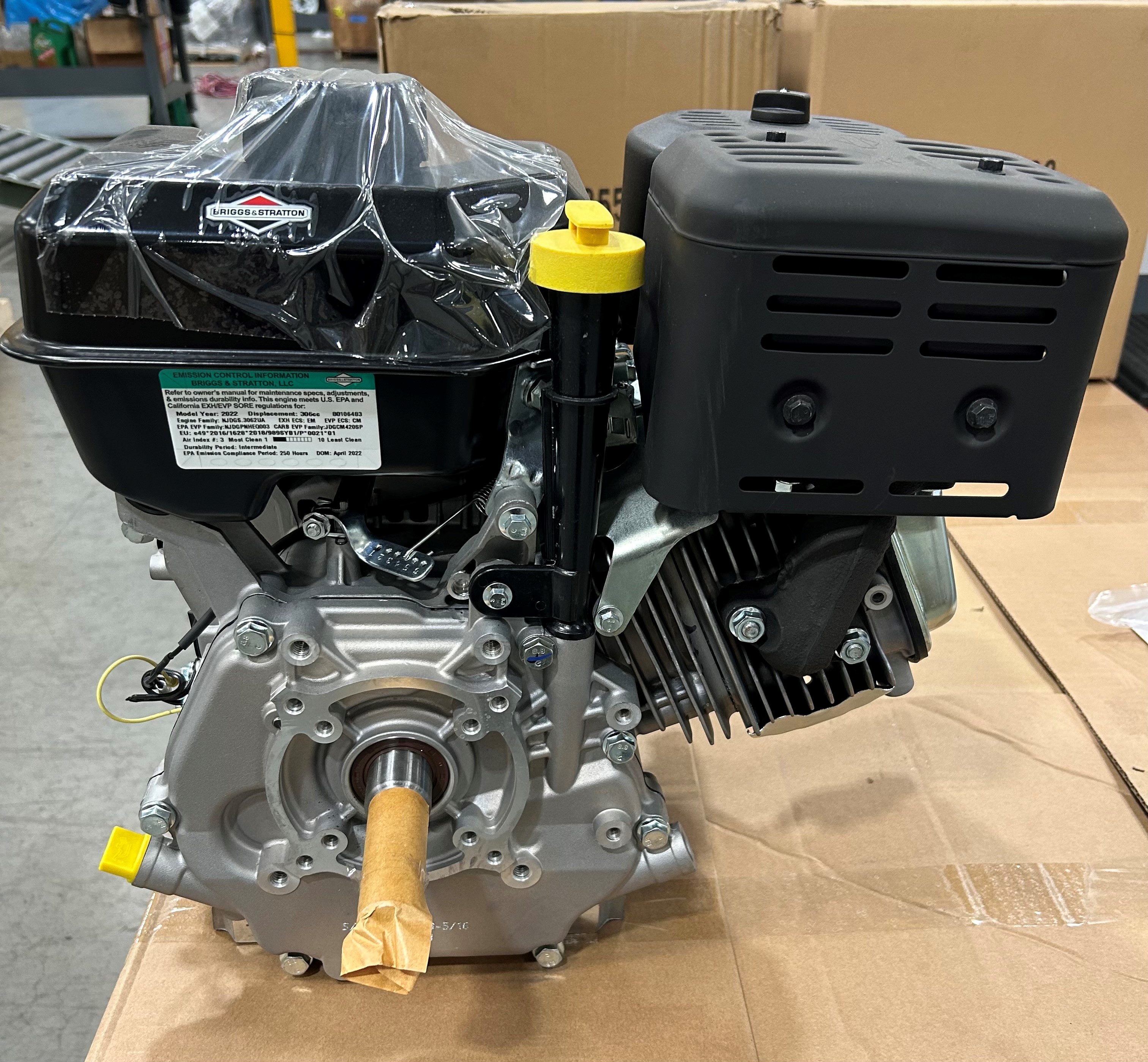

Part # 48187 ENGINE, BRIGGS, XR1450, 9HP



Year: | Serial #:
Price: $420.00
List Price: $420.00
Warranty Terms: Full Term
Machine Hours:
Location: San Bernardino CA

Condition:

New engine comes with full warranty from the manufacturer

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
Model Series 19N1
Power Lbs/Ft of Torque 14.5
Engine Series 1450
Displacement 306
Oil Capacity 37 oz (1.1 l)
Valve Configuration OHV
Flywheel Torque 90 lb/ft (122.0 Nm)
Governor Arm Torque 100 lb/in (11.5 Nm)
Carb Mount 55 lb/in (6.0 Nm)
Plug Gap 0.03 in (0.75 mm)
Intake Valve .005-.007 in (.13-.18 mm)
Exhaust Valve .005-.007 in (.13-.18 mm)
Idle Speed 1750
Air Gap .008-.016 in (.20-.41 mm)
Flywheel Puller Part 19165
Flywheel Holder Part 19433
Connecting Rod Torque 170 lb/in (19.0 Nm)
Sump Torque 220 lb/in (25.0 Nm)
Head Torque 360 lb/in (41.0 Nm)
Top No Load (rpms) 3750

For more info please email mlopez@multiquip.com / dgerales@multiquip.com
