DIS100SSK4F

DIS100SSK4F

95 CFM Delivery, Kubota Tier 4 Final

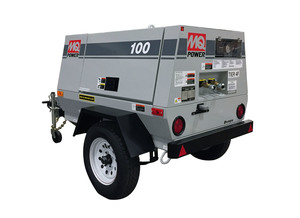

Multiquip is proud to introduce the 95 cubic-feet-per-minute DIS100SSK4F Air Compressor, engineered to meet the needs of the construction and equipment rental professionals. It's powered by a 24.4 horsepower Kubota diesel engine that meets EPA Tier 4 Final engine emissions.

The weather resistant steel housing is fully lockable for safe, unattended operation. The sound attenuated cabinet reduces engine noise during operation. The easy to navigate control panel displays the compressors operating pressure, hours, fuel level as well was providing indicators for oil pressure, water tempature, engine speed, etc. The ST175/80D13 tires provide a smooth, stable towing characteristics for both on highway or around the job site.





Unit Specifications
Type Rotary Screw
Rated Delivery 95 2.8
Rated Operating Pressure 100 PSI 6.9 BAR
Oil Capacity 3.3 gal 12.5 L
Air Service Connections Type Two 3/4 in NPT
Cooling System Oil to Air
Minimum Operating Pressure 73 PSI 5.0 BAR
Maximum Operating Pressure 120 PSI 8.3 BAR
Sound Level dB(A)
Full Load at 23 Feet
70 db(A)

Trailer Specifications
Gross Axle Weight Rating (GAWR) 2500 lb 1334 kg
Tire Size ST175/80D13 LR-C
Tow Bar Design Bolt on "A" Frame
Jack Stand Type Caster
Dimensions & Weights
Overall Length 112.20 in 2850 mm
Overall Width 58.07 in 1475 mm
Overall Height 51.57 in 1310 mm
Operating Weight 1631.42 lb 740 kg
Shipping Weight 1521.19 lb 690 kg
Engine Specifications
Make/ModelKubota / D1005-E4B
EmissionsTier 4 Final Certified
Starting SystemElectric
Design 4-cycle, Water Cooled, Direct Injection
Gross Engine Power Output24.4 bhp18.19 kW
Fuel Tank Capacity 10.6 gal 40 L
Fuel Consumption:
   Full load1.61 gph6.1 lph
   1/2 load1.16 gph 4.4 lph
Coolant Capacity1.06 gal4.0 L
Oil Capacity 1.4 gal5.1 L
Battery12V, Group 24, CCA 650
Notice: Features and equipment specifications are subject to change without notice.
