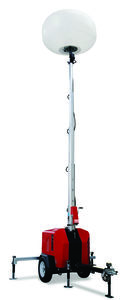

GBX24BK - Towable Balloon Light Tower
The GBX24BK Balloon LED GloBug Light Tower is one of the most powerful and compact mobile diffused lighting systems in the industry. The unique 2400 W LED balloon lamp provides 360° dominant glare-free lighting over 225 ft and 399,000 lumen. The unit is powered by the poular and efficient EPA/CARB certified KUBOTA Z482 diesel engine that provides an operating time of 140 hours. The easy raise/lower vertical mast assembly extends to a max height of 27 ft and has a stowage height of 7.6 ft. The trailer frame is DOT/NHSTA approved and has forklifft pockets and four adjustable jack stands.
- 2400W LED Balloon Lamp
- Circular glare-free lighting over 225’
- Exceptional 399,000 lumen output
- Lighting rated at 5,700 Kelvin
- Multi-sectional aluminum vertical mast – for strength and corrosion resistance
- Easy mechanical raise/lower system
- 45 Gallon fuel capacity provides 140 operating hours of light
- Powered by a trusted and highly efficient KUBOTA Z482 diesel engine
- Four adjustable jack stands to ensure level stability
- Wind limitations to 45 MPH
Performance Data
| Engine | KUBOTA Z482 diesel 2-cylinder | |
| HP/RPM | 6.1 at 1,800 | |
| Fuel Capacity | 45 gal | |
| MAX Run Time | 140 hours | |
| Lamp Type | 2400W LED Balloon Lamp | |
| Total Lumens | 399,000 | |
| Generator | MeccAlte, Brushless | |
| Trailer | Towable DOT/NHSTA approved | |
| Mast | Aluminum multi-sectional | |
| Mast MAX Height | 27 ft | |
| MAX Wind Limitations | 45 MPH | |
| Shipping Weight | 1,278 lb | |
| Dimensions (Stowed) | 5.3 x4 x 7.6 ft | |
Notice: Features and equipment specifications are subject to change without notice.
