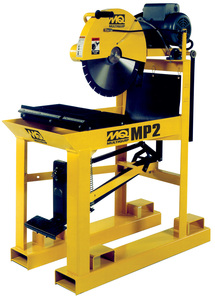

MP275E3

MP275E3

20" Blade Guard, 7.5-HP 230V 3-Phase motor
Shown w/ optional Diamond Blade

Multiquip's Masonry Pro Saw MP2 Series saws are designed for the most challenging industrial grade jobs where high productivity is required. All saws are mounted to a rugged reinforced steel frame with an integrated foot pedal control for precise, safe cutting. Forklift pockets permit easy transport.

  • Powerful Baldor 7.5HP 230V 60 Hz three-phase Electric Motor
  • Rigid steel frame construction minimizes vibration and assures accurate cutting
  • Stay-level blade guard for operator safety
  • Accurate screw thread and foot pedal control provides precise blade orientation and operator comfort
  • Fork lift pockets for easy transportation
  • High volume Electric water pump for maximum blade cooling
  • Open back design permits handling larger materials
  • Cutting jig included
  • Sturdy aluminum conveyor cart for maximum stability and easy travel




Unit Specifications
Power Source 7.5 HP three-phase 230V 60 Hz
Blade Capacity 20 in 508 mm
Cutting Depth 8 in 203 mm
Dimensions & Weights
Overall Length 48 in 1219 mm
Overall Width 23 in 584 mm
Overall Height 61 in 1549 mm
Operating Weight 526 lb 239 kg
Notice: Features and equipment specifications are subject to change without notice.
