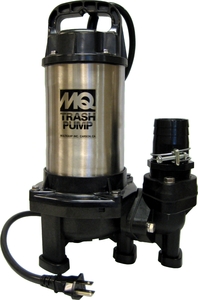

PX400
- .5HP, 115V/6.2A, 1Ø, Electric Motor.
- Built-in Overload Protection.
- 2” (NPT) Female Discharge w/Barb Hose Adapter and hose clamp.
- Total Head: 34 ft.
- MAX Capacity: 72 GPM.
- Pumps Liquid Up To 120° F.
- 304 Stainless Steel Pump Housing Body
- Dewaters Flat Surfaces Up To 1.5” Levels.
| Impeller Type | Urethane Resin | |
| Impeller Disc Size | 2 in | 51 mm |
| Total Head | 34 ft | 10.3 m |
| Water Capacity | 72 gpm | 273 lpm |
| Max. Solid Intake | 1 in | 25 mm |
| Power | 0.5 HP | 0.37 kW |
| Phase | Single | |
| Voltage | 115 V | |
| Starting Amperage | 21 A | |
| Running Amperage | 6.2 A | |
| Cable Length | 19 ft | 5.6 m |
| Pump Diameter | 10 in | 25.4 mm |
| Overall Height | 17 in | 432 mm |
| Operating Weight | 25 lb | 11 kg |
This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). Additionally, with its abrasion resistant resin impeller, and corrosion resistant stainless steel construction, this pump tackles marine and certain chemical applications. Further, the PX400 incorporates internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19’ Power Cable with strain relief.
Multiquip offers the following Optional Accessories for the PX400:
Float Switch ~ SW1A
Mechanically activated, wide-angle design single ON/OFF float switch that is not sensitive to rotation or turbulence. A 120V “piggy-back” plug provides convenient operational set-up. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
SW1A Features
· 120/230V 50/60Hz Single Phase
· Rated for 13A running and 85A start-up.
· Adjustable activation range 6” to 18”.
· High impact PVC, corrosion resistant float housing.
· Operates up to 140° F.
· Heavy duty electrical contacts.
· UL/CSA Certified.
· Passed NSF Standard 61 Protocol.
· 16 gauge, 2-conductor water resistant cable - 20’ cord length.
· Includes standard mounting cable & pipe clamps.
Control Box ~ CB3
120V 50/60 Hz Single Phase Controller w/two mechanically activated wide angle ON/OFF float switches (SW1WOPA). This box is selected if the operations call for a manual ON/OFF/AUTO Switch. Housing manufactured from polyester reinforced fiberglass, water resistant, UL/CSA Certified. Use with any 115V or 120V model submersible pump. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
Double Float Switch ~ SW2A
Consists of two mechanically activated wide-angle ON/OFF float switches and a splice tube. The slice tube contains a Holding Relay which enables the floats to function in series. It is well suited for confined applications requiring an accurate pumping range. A Holding Relay eliminates pump chatter in turbulent water conditions. (Deactivation point @ 4” below mounting – Activation point @ 4” above mounting).
SW2A Features
· 120/230V 50/60Hz Single Phase
· Rated for 13A running and 78A start-up.
· Adjustable activation range 2” to 48”.
· High impact PP, corrosion resistant float housing.
· Operates up to 140° F.
· Heavy duty electrical contacts.
· UL/CSA Certified.
· Passed NSF Standard 61 Protocol.
· Cable attached to Float Housings: 16 gauge, 2-conductor water resistant
· Cable above Splice: 14 gauge 3 conductor w/‘piggy-back’ 120V plug w/20’ cord Length.
· Includes standard mounting cable & pipe clamps.
Discharge Hose – NPT Thread
- HD250 - (50’ L 2” Diameter)
Discharge Hose – Quick Disconnect Couplers
- HDQ250 - (50’ L 2” Diameter)
