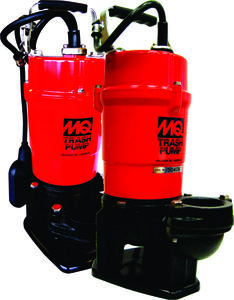

ST2040T / ST2040TF

ST2040T / ST2040TF

2 Inch Discharge, 115V 1Ø, 1.0 HP, 79 GPM, 40 ft Total Head

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations. Further, the ST2040T incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 25’ Power Cable with strain relief. Model ST2040TF is avaiable that provides a tethered industrial mechanical float switch assembly.



  • 1.0HP, 115V/6.5A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge.
  • Total Head: 40 ft.
  • MAX Capacity: 79 gpm.
  • Pumps Liquid Up To 120° F.
  • Heavy-duty Cast Iron Housing construction.
  • Dewaters Flat Surfaces Up To 2” Levels.




Unit Specifications
Impeller Type Neoprene Rubber over
Cast-Iron
Impeller Disc Size 2 in 51 mm
Total Head 40 ft 12.2 m
Water Capacity 79 gpm 299 lpm
Max. Solid Intake 1 in 25.4 mm
Electrical Specifications
Power 1 HP 0.75 kW
Phase Single
Voltage 115 V
Starting Amperage 25 A
Running Amperage 6.8 A
Cable Length 25 ft 7.6 m
Dimensions & Weights
Pump Diameter 10.3 in 26.7 mm
Overall Height 16.8 in 427 mm
Operating Weight 34 lb 15.4 kg
Notice: Features and equipment specifications are subject to change without notice.
