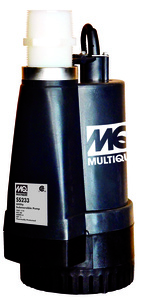

SS233

SS233

2 inch discharge, 115V, .5 HP, 60 GPM, 20 ft head
This lightweight, compact submersible pump is the first choice for household moving water applications such as: flooded rooms, flat roofs, fill tanks, basins, fountains and waterfalls. Hardy thermoplastic pump casing body resists corrosion and heat. Further, the SS233 incorporates internal thermal overload protection, dual shaft seals, and positive direct drive thermoplastic impeller secured with stainless steel fittings.

  • .5HP, 115V/6A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • Industrial Polymer Outer Casing.
  • 2” (NPT) Female Discharge w/Barb Hose Adapter.
  • Total Head: 20 ft.
  • MAX Capacity: 60 GPM.
  • Carrying Handle
  • Pumps Liquid Up To 120° F.
  • Dewaters Surfaces Up To 1” Levels.
  • Rated for 4,500 Hours of Intermittent Duty.




Unit Specifications
Impeller Type Plastic
Impeller Disc Size 2 in 50 mm
Total Head 20 ft 6.1 m
Water Capacity 60 gpm 227 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 0.5 HP 0.37 kW
Phase Single
Voltage 115 V
Starting Amperage 30 A
Running Amperage 6 A
Cable Length 10 ft 3 m
Dimensions & Weights
Pump Diameter 8.1 in 206 mm
Overall Height 14.5 in 368 mm
Operating Weight 15.5 lb 7 kg
Notice: Features and equipment specifications are subject to change without notice.
