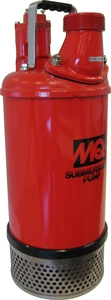

ST3050D

ST3050D

3 Inch Discharge, 230/460V three-phase, 5.0 HP, 270 GPM, 86 ft Total Head
This submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, and Municipalities. Further, the ST3050D incorporates a rugged industrial cast iron housing, dual shaft seals, sealed ball bearings impeller, carrying handle, and molded 50’ Power Cable with strain relief. This type of pump requires a Control Box to provide safe operations and safety shutdowns such as thermal & voltage overload protection. Further, the Control Box would permit float switch (if required) connections.

  • 5.0HP, 230/460V, three-phase, Electric Motor.
  • 3” (NPT) Female Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 50’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/2” Levels.




Unit Specifications
Impeller Type Cast-Ductile-Iron
Impeller Disc Size 3 in 75 mm
Total Head 86 ft 26 m
Water Capacity 270 gpm 1022 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 5 HP 3.75 kW
Phase Three
Voltage 230/460 V
Starting Amperage 77 - 230V / 39 - 460V A
Running Amperage 14.2 - 230V / 7.1 - 460V A
Cable Length 50 ft 15.2 m
Dimensions & Weights
Pump Diameter 10.2 in 259 mm
Overall Height 26.8 in 681 mm
Operating Weight 120 lb 54 kg
Notice: Features and equipment specifications are subject to change without notice.
