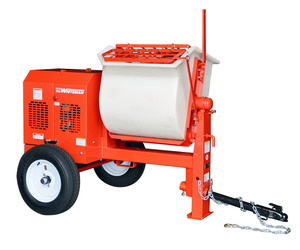

WM70PE

WM70PE

7cf Plaster/Mortar, 115/230V 1phase
Multiquip's Whiteman heavy-duty plaster/mortar mixers set the standard in quality and engineering excellence.
  • Mixes up to 7-cubic feet (93 liters) of material
  • Baldor electric motor features dual voltage
  • EasyClean polyethylene drum
  • Rugged 14-gauge engine cover resists vibration
  • Schedule-80 steel removable tow tongue
  • High tensile strength cast iron paddle arms with wiper blades




Unit Specifications
Drive System V-belt
Drum Capacity 7 cu. ft
198 L
1 1/2 - 2 1/2 bags
Dump Type Manual
Discharge Height 21 in 530 mm
Drum Type Poly
Drum Thickness 10
Engine Cover Thickness 14
Tire Size B78x13
Frame Type Tubular
Paint Type Powder coat
Power Source Baldor 1.5 HP single phase 115/230V Electric
Dimensions & Weights
Overall Length 98 in 2489 mm
Overall Width 50 in 1270 mm
Overall Height 55 in 1397 mm
Overall Height
w/Dump Handle
73 in 1850 mm
Operating Weight 690 lb 312.9 kg
Notice: Features and equipment specifications are subject to change without notice.
