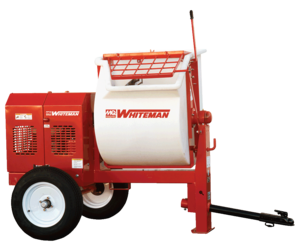

WM90PE

WM90PE

9cf Plaster/Mortar, Electric 230V 1phase
These large, trusty plaster/mortar mixers set the standard in quality and engineering excellence.
  • Mixes up to 9-cubic feet (248 liters) of material
  • Strong cast bull gears and pulleys
  • EasyClean polyethylene drum
  • Heavy-duty safety grate with built-in bag cutter
  • Schedule-80 steel removable tow tongue




Unit Specifications
Drive System V-belt
Drum Capacity 9 cu. ft
254.9 L
2 1/2 - 3 1/2 bags
Dump Type Manual
Discharge Height 21 in 530 mm
Drum Type Poly
Drum Thickness 10
Engine Cover Thickness 14
Tire Size B78x13
Frame Type Tubular
Paint Type Powder coat
Power Source Baldor 3.0 HP 1 Ph 230V Electric
Dimensions & Weights
Overall Length 98 in 2489 mm
Overall Width 50 in 1270 mm
Overall Height 59 in 1498.6 mm
Overall Height
w/Dump Handle
77 in 1960 mm
Operating Weight 770 lb 349.2 kg
Notice: Features and equipment specifications are subject to change without notice.
