AR14H

AR14H

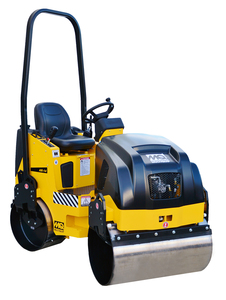

Vibratory roller, 35.6", Honda GX630

The Compact, 1-ton class AR14-Series roller delivers exceptional compaction performance on asphalt and granular soils.  A wise investment for demanding construction professionals looking for versatility and productivity.

  • Reliable Honda GX630 engine offers easy starting and exceptionally quiet operation
  • Compact design provides operator with clear line of sight for better steering
  • Recessed drive motors and minimal frame overhang enables clearance of high curbs and obstructions
  • Maintenance free articulation joint and vibratory assembly greatly reduces service time
  • Heavy duty steel frame and high strength fiberglass composite resist wear and tear and are exceptionally durable
  • 12V power outlet charges portable electronic devices and cup holder holds standard travel mugs
  • Easy to use controls provide intuitive access to vibration, water pump, and water flow controls
  • Engine drain hose simplifies service by facilitating clean and easy oil changes
  • 35 gallon water tank with tethered cap provides extended run time on asphalt applications and prevents lost caps
  • Hour/Tachometer enable accurate measure of hour usage and engine RPM


  •

    Unit Specifications
    Compaction Force 3400 lb 15.12 kN
    Travel Speed 4.8 mph 7.7 kph
    Water Tank Capacity 35 gal 132.48 L
    Drum Specifications
    Front Drum Width 35.6 in 904 mm
    Rear Drum Width 35.6 in 904 mm
    Dimensions & Weights
    Overall Length 73.5 in 1867 mm
    Overall Width 37 in 940 mm
    Overall Height 95 in 2413 mm
    Operating Weight 2688 lb 1219 kg
    Shipping Weight 2992 lb 1357 kg
    Notice: Features and equipment specifications are subject to change without notice.
