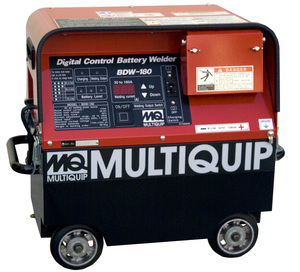

BDW180MC

BDW180MC

180A Portable True DC Powered Welder, 12V-12Ah Batteries
Multiquip's new BDW180MC Battery-Powered Welder delivers premium performance with true DC Power.
  • True DC Power
  • Rechargable battery powered
  • quiet with no exhaust fumes
  • Weld and recharge at the same time




Unit Specifications
DC Voltage 26.8 V
DC Current 170A
Current Range 30-180 A
Max Duty Cycle
w/ Full Amps Availible		 40% @120 A
DC Current - Constant Current Standard
Welding Processes SMAW
Power Source (5) 12V 17Ah Batteries
AC Input
Rated Voltage 120 V
Rated Current 12.5 A
Frequency 60 Hz
Phase Single
Generl Features and Options
Optional Wheel Kit
Dimensions & Weights
Overall Length 20.5 in 520.7 mm
Overall Width 11.8 in 299.7 mm
Overall Height 17.5 in 444.5 mm
Operating Weight 129 lb 58.5 kg
Notice: Features and equipment specifications are subject to change without notice.
