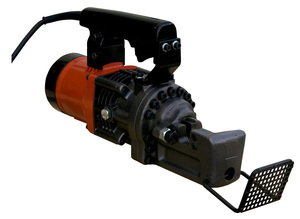

HBC19B
The HBC-19 uses an electro-hydraulic design to handle virtually any rebar cutting job, from slabs and masonry walls to large buildings and bridges.
- Cuts rebar up to 0.75-inches (20 mm) thick in 2.5 seconds
- 115V, 60 Hz single-phase motor
- Hydrualic pump features magnetic particle filtering for maximum life
- Heat-treated steel blades can be rotated to maximize cutting life
- Weighing only 28.2 pounds (12.8 kg) the unit is easily moved around the jobsite
Rated Power | 11.5 A | |
Max. Cutting Speed | 2.5 sec | |
Electric Motor | 115 Volt, 60 Hz, single phase | |
Notes:<%stf_notes%> |
Max. Bar Size | No. 6 | |
Max. Bar Diameter | 0.75 in | 19 mm |
Max. Bar Size | No. 6 | |
Max. Bar Diameter | 0.75 in | 19 mm |
Max. Bar Size | No. 6 | |
Max. Bar Diameter | 0.75 in | 19 mm |
Overall Length | 15.6 in | 396 mm |
Overall Width | 4.4 in | 110 mm |
Overall Height | 8.7 in | 230 mm |
Operating Weight | 28.2 lb | 12.8 kg |
Shipping Weight | 39 lb | 17.7 kg |
Notice: Features and equipment specifications are subject to change without notice.
