LS450
The "Work Horse" For Most Hard-Rock Applications

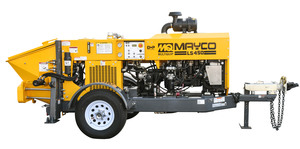

Filling a niche that has been neglected, the Mayco LS450 Concrete Pump has the versatility to efficently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS450 will smoothly pump even low slump concrete mix designs.
Mayco's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.
The powerful Hatz 74.5 diesel engine helps put meaningful working force behind the LS450's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco LS450 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.
- Concrete piston face pressure of 1100 PSI (76 Bar)
- Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)
- Powered by a 74.5 (55.5 kW) Hatz 4H50 turbo diesel
- Designed for aggregate sized up to 1-1/2 inches (38 mm)
- Hopper remixer/agitator standard
- True Reverse allows stroke change during any point in the pumping cycle
- Hard faced wear components for longer life
- Variable volume output (from the control panel) from 0-to-45 cubic yards (34.4 cubic meters) per hour
- Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting
- Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring
- Optional wireless radio remote has a range of 350 feet (106.6 meters)
- Optional rear hydraulic outriggers
- Optional air or electric vibrators for hopper screen
MQ Mayco LS450 Concrete Pumps - powered by Hatz Engines
Hatz engines have been powering Multiquip equipment for decades. The durability of Hatz engines are well known in the construction and concrete industry. The Tier 4F Hatz 4H50 powers the Mayco LS450 Concrete Pump to meet contractor needs and EPA regulations in a compact package with the power and reliability required by concrete contractors.
Watch Video
| Hopper Height | 43 in | 1092 mm |
| Hopper Capacity | 10 ft | 0.283 L |
| Pump Outlet | 5.0 in | 127 mm |
| Concrete Cylinders | 6x36 in | 152x914 mm |
| Hydraulic Cylinders | 3x36 in | 76x914 mm |
| Hydraulic Oil Capacity | 50 gal | 189.2 L |
| Fuel Tank Capacity | 40 gal | 151 L |
| Brake Type | Hydraulic Surge | |
| Pumping Rate per Hour |
0-45 yd | 0-34.4 m |
| Max. Concrete Pressure | 1100 psi | 76 bar |
| Max. Aggregate Size | 1.5 in | 38 mm |
| Note: These figures will vary due to concrete mix design, line size, and job site conditions. | ||
| Overall Length | 172 in | 4365 mm |
| Overall Width | 67 in | 1701 mm |
| Overall Height | 54 in | 1371 mm |
| Operating Weight | 5115 lb | 2338 kg |
