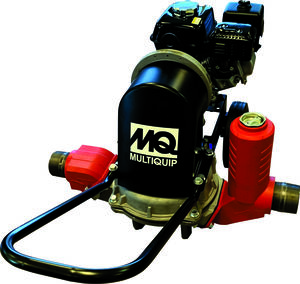

MQD3HA
MQ diaphragm pumps utilize a positive displacement design to effectively move high viscosity liquids, sludge, and general heavy debris laden fluids. Their simple reciprocating dynamics provide the force to successfully operate in the most demanding applications.
- Ideal for muddy water, high solid content.
- Handles 1 5/8” solids.
- For fluids up to 180° F.
- Pumps up to 90 gallons (342 liters) per minute.
- Maximum lift of 25 feet (7.6 meters).
- Powered by a Honda GX120 3.5HP gasoline engine.
- Enclosed gears with oil bath lubrication.
- Integrated wheel kit assembly for ease of transportation.
| Suction x Discharge |
3 x 3 in 76 x 76 mm |
|
| Max. Water Capacity | 90 gpm | 322 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 25 ft | 7.6 m |
| Fuel Tank Capacity | 2.1 qt | 2 L |
| Optional Wheel Kit | Wheel Kit included with pump | |
| Overall Length | 29.0 in | 737 mm |
| Overall Width | 22.0 in | 559 mm |
| Overall Height | 23.0 in | 584 mm |
| Operating Weight | 175 lb | 79 kg |
| Suction Hose - NPT Thread - Male/Female | Inside Diameter | Working Pressure | Wt. | |
| HS320 | Suction Hose, 20 feet - 3" | 3" | 60 | 26 (12) |
| HS325 | Suction Hose, 25 feet - 3" | 3" | 60 | 31 (14) |
| Suction Hose - NPT Thread w/Quick Couplers - Male/Female | ||||
| HSQ320 | Suction Hose, 20 feet - 3" Quick Coupler | 3" | 60 | 30 (14) |
| HSQ325 | Suction Hose, 25 feet - 3" Quick Coupler | 3" | 60 | 34 (15) |
| Discharge Hose - NPT Thread w/ Standard Fittings | Inside Diameter | Working Pressure | Wt. | |
| HD350 | Discharge Hose, 50 feet - 3" | 3" | 60 | 40 (18) |
| Discharge Hose - NPT Thread with Quick Couplers | ||||
| HDQ350 | Discharge Hose, 50 feet - 3" Quick Coupler | 3" | 60 | 43 (20) |
| Couplers | Wt. | |||
| A300A | Coupling, 3" NPT to Q-Disconnect, 3" | 1 (.04) | ||
Notice: Features and equipment specifications are subject to change without notice.
