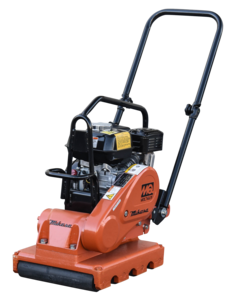

MVB85H

MVB85H

2,270 lb. cf, Honda GX 120, 12.6 in. plate

Give interlocking pavers an even finish.



  • The machines' hard rubber rollers make it virtually impossible to chip corners, scartch, break or drag pavers.
  • Great for narrow areas and exterting compaction pressure alongside walls.
  • Tooles foldable handle allows for quick and easy loading into vans and trucks.
  • Rollers allow for easy pull back to compact on the spot.










Unit Specifications
# of Rollers 4
Roller Diameter 2.9 in 73.66 mm
Centrifugal Force 2270 lbf 10.1 kN
Exciter Speed 5600 VPM
Plate Size 12.6 x 17.05 in
320 x 433 mm
Max Forward Speed
Per Min.		 82 ft 25 m
Dimensions & Weights
Overall Length 35.04 in 890 mm
Overall Width 14.8 in 376 mm
Overall Height 36.14 in 918 mm
Shipping Dimensions 25 x 15 x 26 in
635 x 381 x 660 mm
Operating Weight 198 lb 90 kg
Shipping Weight 208 lb 95 kg
Notice: Features and equipment specifications are subject to change without notice.
