SP2S20H

SP2S20H

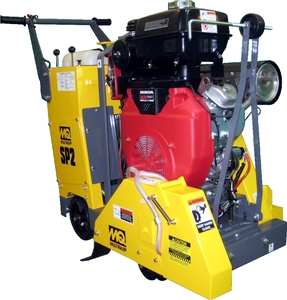

20" Blade Guard, Self Propelled, Honda GX630 Gasoline Engine
SP2S20H20
Multiquip's Street Pro SP2 self-propelled slab saws offer the proven design and engineering to take on the toughest diamond sawing tasks.
    • 20" Blade Guard
    • Rugged Frame Assembly
    • Adjustable Handle Bar
    • Cuts to depths up to 7.5 inches
    • Powerful Honda GX630 Gasoline Engine, Electric Start
    • Industrial Blade Shaft Assembly
    • Built-In Water Tank
    • Trusted Hydostatic Transmission for Easy FWD/REV propulsion
    • 395 lbs.




Unit Specifications
Power Source 18 HP Honda GX620 Electric Start
Blade Capacity 20 in 508 mm
Cutting Depth 7.5 in 190 mm
Front Wheel Bearing Mounted 5 in Dia. x 2 in Wide
127 x 51 mm
Rear Wheel Bearing Mounted 8 in Dia. x 2 in Wide
203 x 51 mm
Dimensions & Weights
Overall Length 72 in 1829 mm
Overall Width 23.75 in 603 mm
Overall Height 36.25 in 921 mm
Operating Weight 395 lb 179 kg
Notice: Features and equipment specifications are subject to change without notice.
