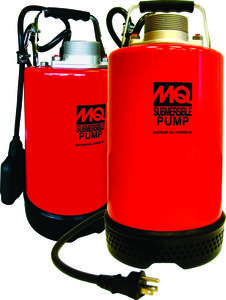

ST2037 / ST2037F

ST2037 / ST2037F

2 Inch Discharge, 115V 1Ø, 1.0 HP, 73 GPM, 37' Total Head
This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2037 incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 25’ Power Cable with strain relief. Model ST2037F is available that provides a tethered industrial mechanical float switch assembly.

  • 1.0HP, 115V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 25’ of molded power cord w/strain relief

  • Dewaters Flat Surfaces Up To 1/2” Levels.




Unit Specifications
Impeller Type Neoprene Rubber over
Cast-Iron
Impeller Disc Size 2 in 50 mm
Total Head 37 ft 11.3 m
Water Capacity 73 gpm 276 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 1 HP 0.75 kW
Phase Single
Voltage 115 V
Starting Amperage 25 A
Running Amperage 6.9 A
Cable Length 25 ft 7.5 m
Dimensions & Weights
Pump Diameter 7.4 in 188 mm
Overall Height 15.4 in 391 mm
Operating Weight 31 lb 14 kg
Notice: Features and equipment specifications are subject to change without notice.
