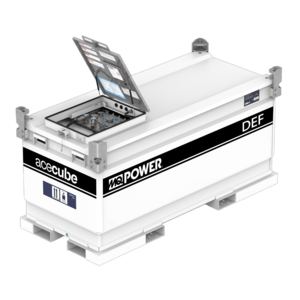

Acecube DEF

Acecube DEF

DEF Storage, Up to 436 gal capacity

Purpose-built for DEF storage, this fully self-contained tank includes integrated dispensing equipment, corrosion-resistant materials, and compact design for reliable transport and site use.

  • Unique Design Standard — The Acecube DEF comes complete with an extra-large galvanized hatch lid and galvanized stacking corners. The primary hatch lid opens up to a component ports plate and large equipment compartment area designed to house various pumps or interface controls. The inner tank located inside the class leading Acecube protection shell can be supllied as a 304 stainless steel tank or a HDEP poly plastic tank
  • Maintenance & Environment — The three tier component design allows the inner tank to be completely removed and disconnected to help ensure efficient and unencumbered cleaning, maintenance, and inspection, minimizing downtime and increasing your ROI!
  • Stacking & Racking — All Acecube DEF tanks are "stackable and rackable" into 40ft shipping containers for world-wide transport. they are stackable three units high when empty and two high when filled.
  • Dispensing & Accessibility — Acecube DEF Tanks come equipped with spacious equipment chamber containing a custom bracket that supports the fitting of interface modules, electric cable connections, push pump, and hoses suitable for the automatic replenishment of DEF
  • Transportable & Portable — The Acecube DEF tank is an IBC bundled fuel storage tank and comes in multiple sizes. The tanks are built to the UN31 A/Y (DOT) Department of Transportation standard and makes the Acecube DEF tank safe for transportation on all major highways even when full

MQ Power AceCube

Introducing the MQ Power Acecube. A rugged, intelligently designed line of bunded steel tanks engineered for the safe, efficient storage and transfer of diesel fuel and DEF. Built for demanding job sites, trusted around the world. Available in three models with a wide range of capacities to fit any job:

Watch Video

Available As:

ACV-DEF-100G

100 Gal Capacity

ACV-DEF-211G

211 Gal Capacity

ACV-DEF-436G

432 Gal Capacity

ACV-DEF-700G

695 Gal Capacity





ACV-DEF-100G Dimensions and Weights
Overall Length 54 in 1467 mm
Overall Width 41 in 1061 mm
Overall Height 33 in 856 mm
Operating Weight 1598 lb 725 kg
Shipping Weight 833 lb 378 kg
ACV-DEF-211G Dimensions and Weights
Overall Length 64 in 1643 mm
Overall Width 43 in 1099 mm
Overall Height 51 in 1295 mm
Operating Weight 2949 lb 1338 kg
Shipping Weight 1128 lb 512 kg
ACV-DEF-436G Dimensions and Weights
Overall Length 102 in 2813 mm
Overall Width 46 in 1179 mm
Overall Height 51 in 1295 mm
Operating Weight 5496 lb 2493 kg
Shipping Weight 1770 lb 803 kg
ACV-DEF-700G Dimensions & Weights
Overall Length 90 in 2300 mm
Overall Width 28 in 1985 mm
Overall Height 51 in 1295 mm
Operating Weight 8207 lb 3723 kg
Shipping Weight 2215 lb 1005 kg
Notice: Features and equipment specifications are subject to change without notice.
