CA4HC

CA4HC

4-blade, 24", Honda GX120, 3.5 HP, 70-130 RPM blade speed, centrifugal clutch

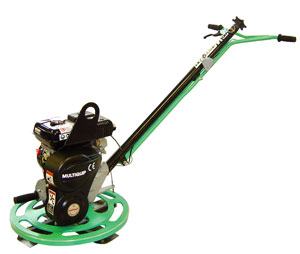

Shown wth optional STHAC handle
This compact design is ideal for finishing edges and around risers, has a powerful Honda GX 120 engine, centrifugal clutch and gives professional finishers the choice of a standard or Quick-Pitch handle.
  • Only 24 inches (610 mm) in diameter making it great for finishing tight spaces and around obstructions
  • Rotating guard ring allows finishing tight to the wall without marking or marring
  • QuickPitch handle provides simple and fast blade control
  • Folding handle design simplifies transport and reduces storage space
  • Available with either QuickPitch or Standard (knob-type) handle options
  • Center mount lifting bale is standard




Unit Specifications
Clutch Type Centrifugal
No. of Blades 4
Ring Diameter 24 in 609.6 mm
Rotor Speed 70-130 RPM
Handle Options STHAC
QPHAFC
Dimensions & Weights
Overall Length 61 in 1555 mm
Overall Width 24 in 610 mm
Overall Height 36.25 in 921 mm
Operating Weight 171 lb 77.5 kg
Shipping Weight 212 lb 96.1 kg
Engine Specifications
Engine Make/Model
Start Method Recoil
Engine Power 3.5 HP 2.6 kW
Engine RPM 3600
Fuel Type gasoline
Notice: Features and equipment specifications are subject to change without notice.
