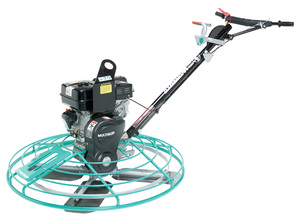

B46H90
Shown with optional QXH QuickPitch Handle
· 46-inch (1170mm) guard ring diameter
· Trowel covered by 1-year limited warranty
· Front access panel provides quick access to trowel arms and blades
· Center mount lifting bale included
· Spider and thrust collar assembly designed simlifes routine maintenance
· Gearbox features top quality components & large oil capacity for years of trouble-free performance
· Optimally balanced for smooth finishing
· Handles available with either QuickPitch or Standard (knob type) pitch control
| Clutch Type | Centrifugal | |
| No. of Blades | 4 | |
| Ring Diameter | 46 in | 1168.4 mm |
| Rotor Speed | 60-130 RPM | |
| Handle Options | SXH QXH |
|
| Overall Length* | 75 in | 1910 mm |
| Overall Width | 46 in | 1170 mm |
| Overall Height* | 41 in | 1044 mm |
| Operating Weight** | 242 lb | 110 kg |
| Shipping Weight** | 292 lb | 132 kg |
* Approximate dimensions include Standard Handle (Sold seperately).
**Weight does not include handle.
**Weight does not include handle.
| Engine Make/Model | Honda GX-270 | |
| Start Method | Recoil | |
| Engine Power | 8 HP | 6 kW |
| Engine RPM | 3600 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
