J36H55

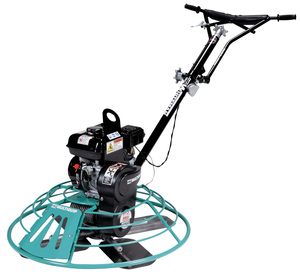

Shown with optional SXH Standard Handle
Our most popular mid-size trowel. Reliability and performance are trademarks of this industry-proven trowel.
· 36-inch (915 mm) guard ring diameter
· Trowel covered by 1-year limited warranty
· Front access panel provides quick access to trowel arms and blades
· Center mount lifting bale included
· Spider and thrust collar assembly design simplifies routine maintenance
· Gearbox features top quality components & large oil capacity for years of trouble-free performance
· Optimally balanced for smooth finishing
· Handles available with either QuickPitch or Standard (knob type) pitch control
| Clutch Type | Centrifugal | |
| No. of Blades | 4 | |
| Ring Diameter | 36 in | 914.4 mm |
| Rotor Speed | 60-130 RPM | |
| Handle Options | SXH QXH |
|
| Overall Length | 70 in | 1789 mm |
| Overall Width | 36 in | 915 mm |
| Overall Height | 41 in | 1044 mm |
| Operating Weight | 150 lb | 68 kg |
| Shipping Weight | 190 lb | 86 kg |
Notice: Features and equipment specifications are subject to change without notice.
