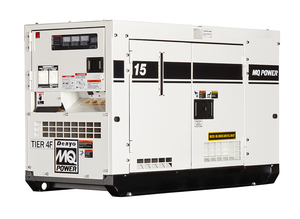

DCA15SPXU4F
Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.
The DCA15SPXU4F is a 15 kW Single Phase generator with 1.0 power factor and 120/240 volt output. The unit features a steel, sound attenuated, weatherproof and lockable housing. Its easy to maintain design offers quick and direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes several instruments including an ammeter, frequency meter, AC circuit breaker and much more.
| Prime Rating | 14 kW | |
| Standby Rating | 14.7 kW | |
| Generator RPM | 1800 | |
| Voltage - Single Phase | 120/240 V | |
| Generator Design | Revolving field, Self-Ventilated, Drip-Proof, Single Bearing | |
| Voltage Regulation (No Load to Full Load) | ±0.5% | |
| Power Factor | 1.0 | |
| Armature Connection | Series | |
| Excitation | Brushles with AVR | |
| No. Poles | 4 | |
| Frequency | 60 Hz | |
| Frequency Regulation (steady state load) | ±0.25% | |
| Sound Level (Full Load at 23 ft.) | 64 dB(A) | |
| Make/Model | Kubota / D1503 | |
| Emissions | Tier 4 Final | |
| Starting System | Electric | |
| Design | 4-cycle, water cooled, swirl chamber diesel engine | |
| Gross Engine Power Output | 24.8 bhp | 18.3 kW |
| Fuel Tank Capacity | 16.4 gal | 62 L |
Please refer to model specific data sheet for detailed specifications. | ||
| Gross Vehicle Weight Rating (GVWR) | 2,000 lb | 907 kg | Gross Axle Weight Rating (GAWR) (ea.) | 3,500 each lb | 1,587 kg |
| Coupler Rating | 3 in. Pintle Eye - 20,000 lb (9,072 kg); 2 in. Ball Coupler - 6,000 lb (2,722 kg); 2-5/16 in. Ball Coupler - 14,000 lb (6,350 kg) | |
| Tire Size | ST175/80D13 LR-C | |
| Tire Load Rating (ea.) | 1,360 lb | 617 kg |
| Wheel Bolt Pattern | 5 Lug on 4.5 in | |
| Fuel Tank Capacity | 28 gal | 105.99 L |
| Fits MQ Power Generator Models | DA7000SSA2 DCA10SPXU4C DCA15SPXU4F |
|
| Overall Length | 98.60 in | 2504.4 mm |
| Overall Width | 55.50 in | 1409.7 mm |
| Overall Height | 22.00 in | 558.8 mm |
| Operating Weight | ||
| With Fuel | 713 lb | 323 kg |
| Without Fuel | 513 lb | 233 kg |
- Single Axle Trailer
- Single Axle Trailer with an integral 28 gallon capacity fuel cell
- Auto Start
- Water Heater
- Battery Charger
- Emergency Stop
- Audible Alarm
- Fuel Filter/Water Separator
- Subbase Fuel Tanks (Custom size configurations)
Notice: Features and equipment specifications are subject to change without notice.
