GB12BS

GB12BS

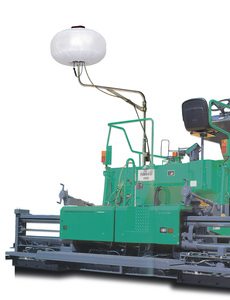

400W Metal Halide, Diffuser Balloon Light, Off-Set Equipment Mount

The model GB12BS represents a quality 400W Metal Halide diffused balloon lighting solution. The unit requires very little power requirements, and provides exceptional 360º shadow-free lighting that supports road constrution activities and similar applications.

Supported by a high grade aluminum 90º off-set mast assembly and flexible brackets and hardware, the GB12BS connects to equipment in minutes and is capable to withstand harsh weather conditions.



  • Metal halide lamp-single 400 watt lamp (34,000 Lumens)
  •  Pure white light provides 360º glare-free illumination
  • Offset 90º pole mount can be attach to most road support equipment
  • Integrated electronic ballast and balloon inflation fan assembly
  • Quick and easy setup: balloon inflates in less than 30 seconds
  • Protective canvas bag stores balloon while not in use
  • Safe for Vehicle traffic-Drivers are not blinded by the intense glare conventional light tower, improving safety
  • Ideal for paving applications




Unit Specifications
Deployment Style 90 degree Offset Pole Mount
Voltage 115 V
Amperage 4 A
Winch Type 90 degree off-set pole assembly
Lighting Specifications
Lamp Type 400W Metal Halide
Lumens 34,000 lm
Standard
Balloon Diameter
33 in 84 cm
Max. Mast Height 103 ft 2.6 m
Mast Stages 3
Dimensions & Weights;
Overall Length 33 in 84 cm
Overall Width 44 in 84 cm
Overall Height 103 in 262 cm
Shipping Dimensions 16 x 7.5 x 50 in
0.4 x 0.2 x 1.3 cm
Operating Weight 35 lb 16 kg
Shipping Weight 39 lb 17.7 kg
Notice: Features and equipment specifications are subject to change without notice.
