HDA48413H

HDA48413H

4-blade, 48", Honda GX390, 11.7 HP, Min 35-225 Max blade speed

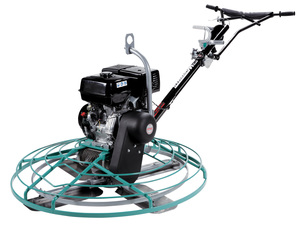

Shown with optional QXHD QuickPitch Handle

Features our heavy-duty gearbox and spider assembly along with a high-horsepower Honda engine. This trowel also features a CVT clutch system that can spin the rotor to a top speed of 225 RPM.

  • Heavy-Duty walk-behind gearbox and CVT drive system
  • Easy to service spider assembly reduces cost of ownership
  • Honda GX390 offers top rotor speed of 225 RPM for high speed burnishing
  • Available with optional QXHD (Quick Pitch) or SXHD (knob-style) handles




Unit Specifications
Clutch Type CVT
No. of Blades 4
Ring Diameter 48 in 2119.2 mm
Rotor Speed 35-225 RPM
Handle Options SXHD
QXHD
Dimensions & Weights
Operating Weight 327 lb 148 kg
Shipping Weight 335 lb 151.9 kg
Notice: Features and equipment specifications are subject to change without notice.
