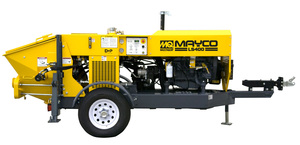

LS400
The Economical Mid-range Concrete Pump
Filling a niche that has been neglected, the Mayco LS400 Concrete Pump has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS400 will smoothly pump even low slump concrete mix designs.
Mayco's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.
The powerful Deutz 77hp diesel engine helps put meaningful working force behind the LS400's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco LS400 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.
- Concrete piston face pressure of 1100 PSI (76 Bar)
- Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)
- Horizonal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters)
- Powered by a 77-hp (57.4 kW) Deutz BF4L2011 turbo diesel
- Designed for aggregate sized up to 1-1/2 inches (38 mm)
- Hopper remixer/agitator standard
- True Reverse allows stroke change during any point in the pumping cycle
- Hard faced wear components for longer life
- Variable volume output (from the control panel) from 0-to-40 cubic yards (30 cubic meters) per hour
- Ideal for use with shotcrete, masonry block fill, slabs, footings, basements, & compaction grouting
- Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic & performance monitoring
- Optional wireless radio remote has a range of 1000 feet (300 meters)
- Optional rear hydraulic outriggers
- Optional air or electric vibrators for hopper screen
Also available as LS400WR (wireless radio remote pre-installed)
Hopper Height | 43 in | 1092 mm |
Hopper Capacity | 10 ft | 0.283 L |
Pump Outlet | 0.5 in | 127 mm |
Concrete Cylinders | 6 x 36 in | 152 x 914 mm |
Hydraulic Cylinders | 3 x 36 in | 76 x 914 mm |
Hydraulic Oil Capacity | 58 gal | 219 L |
Fuel Tank Capacity | 40 gal | 151 L |
Brake Type | Hydraulic Surge |
Pumping Rate per Hour |
0-40 yd | 0-30 m |
Vertical Pumping Height | 300 ft | 91 m |
Horizontal Pumping Distance | 1000 ft | 305 m |
Max. Concrete Pressure | 1100 psi | 76 bar |
Max. Aggregate Size | 1.5 in | 38 mm |
Note: These figures will vary due to concrete mix design, line size, and job site conditions. |
Overall Length | 173 in | 4394 mm |
Overall Width | 68 in | 1727 mm |
Overall Height | 70 in | 1778 mm |
Operating Weight | 4860 lb | 2210 kg |
Standard Features | DCP - Digital Control Panel w/Diagnostic Readout Hopper Remixer 40 Gallon Fuel Capacity |
|
Optional Accessories | Hopper Screen Vibrator Radio Remote Control Hydraulic Rear Outriggers |
