MP1H

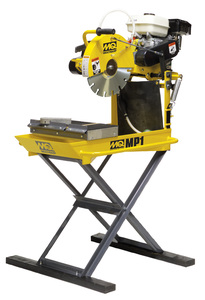

Shown with optional Diamond Blade
The Masonry Pro Saw MP1 Series combines portability and performance in one compact package. This saw is designed for vigorous masonry cutting operations. Reinforced, jig-welded steel frame construction provides rigidity for cutting accuracy and long service life. Powered by a trusted HONDA GX160 Gasoline Engine.
- Powerful HONDA GX160 Gasolie Engine w/Cyclone Air Filtration
- Reinforced, jig-welded steel frame minimizes vibration and assures accurate cutting
- Rugged aluminum conveyor cart for optimum stability
- Open back design permits orientation for cutting large materials
- Balanced easy-tilt cutting head gives operator relief in high tempo operations
- Mounted carrying handles for easy transport
- Stay-level blade guard for operator safety
- High flow centrifugal water pump included
- Cutting jig included
- Optional support stand available (TRAK14SS)
| Power Source | 4.8 HP Honda Gas w/Cyclone Air Filter | |
| Blade Capacity | 14 in | 356 mm |
| Cutting Depth | 5 in | 127 mm |
| Overall Length | 43 in | 1092 mm |
| Overall Width | 33 in | 838 mm |
| Overall Height | 27 in | 686 mm |
| Operating Weight | 256 lb | 116 kg |
Notice: Features and equipment specifications are subject to change without notice.
