TB11PG

TB11PG

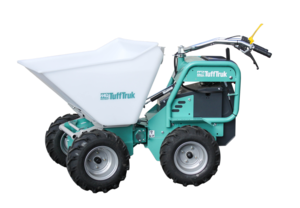

5.16 cu.ft. Poly tub, 34 in. wide, Gasoline Powered, Articulating Joint

The compact TuffTruk is ideal  for interior demolition, environmental remediation, general construction, landscaping and utility work.

Its robust 4-wheel drive provides excellent climbing ability and superior traction in mud or sand. A patented articulated design delivers excellent maneuverability and a tight turning radius. The standard 5.16 ft³ capacity polyethylene tub carries material or debris and passes through 36-inch openings.

Choose between an innovative, zero emission, battery drive (TB11PE) or 5.5 HP Honda gas engine with hydraulic drive. (TB11PG)

Articulating-Joint

Excellent maneuverability with 40° articulation angle and 58-inch turning radius

Articulating-Joint offers excellent maneuverability with 40° articulation angle and 58-inch turning radius




Unit Specifications
Power Supply Honda GX200 5.5 HP Gasoline
Starting System Manual Recoil
Drive & Controls 4x4 - Hydrostatic system
Travel Speed - Forward 0 to 3.5 MPH 0 to 5.6 KPH
Travel Speed - Reverse 0. 1.5 MPH 0 to 2.4 KPH
Bucket Material Polyethylene
Gradability 25 %
Oscillation 6 °
Articulation 40 °
Noise Levels 69 dBA
Notes:58 in. turning radius
Wheel Specifications
Tires 16x6.50-8 Pneumatic
Wheel Width 34.5 in 876.3 mm
Wheel Width (Reversed) 29.5 in 749.3 mm
Max. Load
Single Wheels		 990 lb 449 kg
Dimensions & Weights
Overall Length 68.5 in 1740 mm
Overall Width 34.5 in 876.3 mm
Overall Height 38 in 965.2 mm
Operating Weight 561 lb 254.5 kg
Notice: Features and equipment specifications are subject to change without notice.
