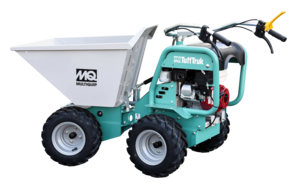

TB11G
The compact TuffTruk is ideal for interior demolition, environmental remediation, general construction, landscaping and utility work.
Its robust 4-wheel drive provides excellent climbing ability and superior traction in mud or sand. A patented articulated design delivers excellent maneuverability and a tight turning radius. The standard 5.16 ft³ capacity steel tub carries material or debris and passes through 36-inch openings.
Choose between an innovative, zero emission, battery drive (TB11E) or 5.5 HP Honda gas engine with hydraulic drive. (TB11G)

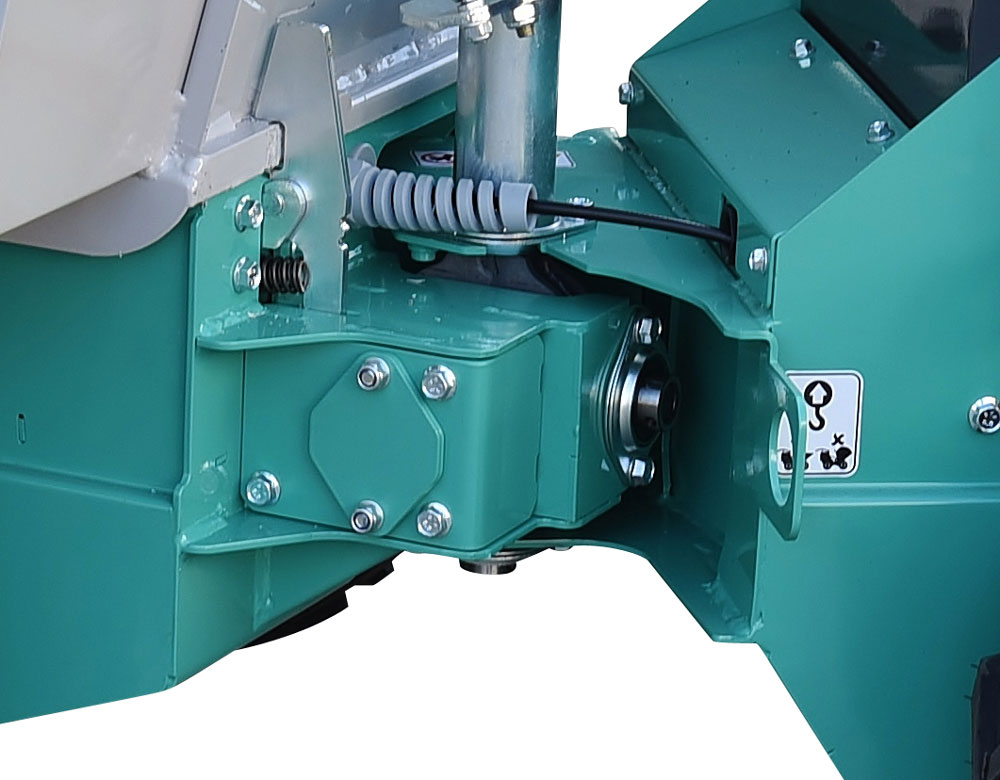

Articulating-Joint
Excellent maneuverability with 40° articulation angle and 58-inch turning radius

Power Supply | Honda GX200 5.5 HP Gasoline | |
Starting System | Manual Recoil | |
Drive & Controls | 4x4 - Hydrostatic system | |
Travel Speed - Forward | 0 to 4 MPH | 0 to 6 KPH |
Travel Speed - Reverse | 0 to 1.5 MPH | 0 2.4 KPH |
Bucket Material | Steel | |
Gradability | 25 % | |
Oscillation | 6 ° | |
Articulation | 40 ° | |
Noise Levels | 69 dBA |
Tires | 16x6.50-8 Pneumatic | |
Wheel Width | 34.5 in | 876.3 mm |
Wheel Width (Reversed) | 29.5 in | 749.3 mm |
Overall Length | 68.5 in | 1740 mm |
Overall Width | 34.5 in | 876.3 mm |
Overall Height | 38 in | 965.2 mm |
Operating Weight | 396 lb | 179.6 kg |
Model | Description | Weight lb. | Dimensions LxWxH in. |
---|---|---|---|
TBH | Towing Hitch - 2-inch diameter ball | 19 | 28x16x8 |
TSP | Snow Plow - includes front tool bar attachment bracket | 66 | 45x19x21 |
TBLADE | Snow Plow - replacement blade only | 55 | 45x11x5 |
FTB | Snow Plow - front tool bar attachment only | 15 | 50x16x11 |
TFB33 | Flatbed - 33.4 inch width | 65 | 33.5x30x6 |
TFB29 | Flatbed - 29.0 inch width | 52 | 30x28.5x6 |
TLP | Log Pole - 2 pieces | 10 | 19x5x8 |
TTE | Tub Extension Kit - for light material only* | 20 | 34x28x6 |
TTH | Tub Dump Handle | 4 | 19x5x5 |
TT7 | Steel Tub only, 7.0 ft3 (660 lbs. capacity) | 85 | 35x28x25 |
TT11 | Steel Tub only, 10.6 ft3 (960 lbs. capacity) | 80 | 35x33.5x23 |
Notice: Features and equipment specifications are subject to change without notice.
