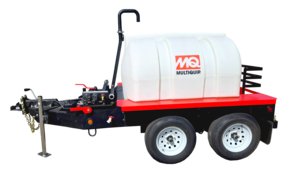

WT5-Series

WT5-Series

550-gallon Water Trailer, 2" Centrifugal Pump

The new Gen 2 550-gallon WT5-Series water trailer with hydraulic brakes delivers unmatched durability with 50% thicker material and a specially engineered tank design making it less susceptible to cracks and damages, while maintaining its shape with a sleeker and more modern aesthetics. The water pump is deliberately set low in the frame, providing enhanced protection. The manifold system is equipped with the same seamless switching function between suction and discharge that our customers have come to expect and love. It is equipped with two 2" ports, one 1-1/2" port, a rear spray bar, and comes standard with a 2 x 20' quick coupler suction hose and a 2 x 50' quick coupler discharge hose that are stored neatly in a hose bin. It is ideal for dust control, firefighting, construction, and more.

  • Store up to 550 gallons of clean water in a durable 3/8" polypropylene water tank
  • Dependable perfromance using Multiquip QP2H 2" centrifugal pump
  • Uniquely molded shape and 50% thicker matieral makes tank stronger and resistant to warping and cracking
  • In-frame water pump provides added protection from damage
  • Intuitive manifold system allows seamless switching between suction and discharge simply by turning a lever
  • Rear spray bar delivers efficient water distribution with coverage up to 16’ x 62’ area
  • Quickly fill tank through a 2” diameter steel pipe with quick discharge coupler or through the 12” fill hole on top
  • Heavy duty tandem axle trailer
  • Ideal for dust control, emergency firefighting, construction, agricultural support and equipment wash down
  • Comes standard with convenient Hose Kit provided (2" x 20' Suction & 2" x 50' Discharge)
  • Made in the U.S.
Available As:
WT5C2

Surge Brakes, Std. Centrifugal Pump

Available As:
WT5CHR2

50ft Hose Reel, Surge Brakes, Std. Centrifugal Pump

Available As:
WTE5C2

Electric Brakes, Std. Centrifugal Pump

Available As:
WTE5CHR2

50ft Hose Reel, Electric Brakes, Std. Centrifugal Pump





Water Tank Specifications
Capacity 550 Gal.
Water Tank Material Polypropylene - 3/8" wall
Fill Port 12" vented port
Fill Rate 3.5 min full fill
Fill Methods Municipal fire hydrant — QD; 1.5" and 2" Q/D cam and groove; one standard garden hose adapters
Delivery Methods 1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar
Pump Specifications
Pump Model Multiquip QP2H 2 in.
Pump Type Centrifugal
Flow / Head 158 GPM / 115 Ft.
Dimensions & Weights
Operating Weight 9100 lb 4128 kg
Shipping Weight 2200 lb 998 kg
Notice: Features and equipment specifications are subject to change without notice.
