WT5HP-Series

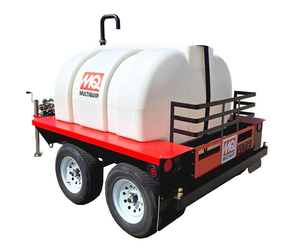

The new Gen 2 550-gallon WT5HP2-Series high pressure water trailer with hydraulic brakes delivers unmatched durability with 50% thicker material and a specially engineered tank design making it less susceptible to cracks and damages, while maintaining its shape with a sleeker and more modern aesthetics. The water pump is deliberately set low in the frame, providing enhanced protection. The manifold system is equipped with the same seamless switching function between suction and discharge that our customers have come to expect and love. It is equipped with two 2" ports, one 1-1/2" port, a 50' hose reel assembly, a rear spray bar, and comes standard with a 2 x 20' quick coupler suction hose that is stored neatly in a hose bin. It is ideal for dust control, firefighting, construction, and more.
- Store up to 550 gallons of clean water in a durable 3/8" polypropylene water tank
- Dependable perfromance with Multiquip QP205SH 2" Centrifugal Pump
- Uniquely molded shape and 50% thicker matieral makes tank stronger and resistant to warping and cracking
- In-frame water pump provides added protection from damage
- Intuitive manifold system allows seamless switching between suction and discharge simply by turning a lever
- Rear spray bar delivers efficient water distribution with coverage up to 16’ x 62’ area
- Quickly fill tank through a 2” diameter steel pipe with quick discharge coupler or through the 12” fill hole on top
- Heavy duty tandem axle trailer
- Ideal for dust control, emergency firefighting, construction, agricultural support and equipment wash down
- Comes standard with convenient 2" x 20' Suction Hose and convenient 1 x 50' hose reel assembly
- Made in the U.S.
Available As:
WT5HP2
Surge Brakes, High-Pressure Pump
Available As:
WTE5HP2
Electric Brakes, High-Pressure Pump
| Capacity | 550 Gal. | |
| Water Tank Material | Polyethylene | |
| Fill Port | 12" vented port | |
| Fill Rate | 5.3 min full fill | |
| Fill Methods | Municipal fire hydrant — QD 1.5" and 2" Q/D cam and groove One standard garden hose adapters |
|
| Delivery Methods | 1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar | |
| Pump Model | MQ QP205SH 2 in. | |
| Pump Type | High Pressure Centrifugal | |
| Flow / Head | 106 GPM / 230 Ft. | |
| Overall Length | 146 in | 3708.4 mm |
| Overall Width | 68 in | 1727.2 mm |
| Overall Height | 80 in | 2032 mm |
| Operating Weight | 1,428 lb | 647.73 kg |
