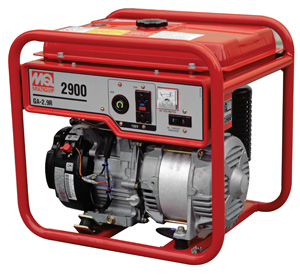

GA29R

GA29R

2.9kW, 120V, Subaru-Robin EX17D
Provides clean, dependable power for construction sites or residential applications. Built for rugged job site conditions but compact and lightweight enough for two people to easily lift into a truck bed.
  • Lightweight and compact design for easy transport
  • 100% copper windings for maximum conductivity
  • Alternator design eliminates maintenance by removing brushes and slip rings
  • Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
  • Runs for five hours on a full tank at full load
  • Powered by a 5.7-hp Subaru-Robin engine with low-oil shutdown







Unit Specifications
Alternator Design Brushless
Frequency 60 hz
Phase Single Phase
Voltage 120 V
Sound level at 30 ft 71 dBA
Fuel Tank Capacity 2.6 gal 10 L
Power Generation
Maximum Continuous
Watts 2900 W 2600 W
Amps at 120V 24.2 A 21.7 A
Receptacles & Circuit Breakers
Main Circuit Breaker 22 A
Number of Poles 1
1 Receptacle of Each: 5-20R 125V GFCI 20A
L5-20R 125V T-Lock 20A
Dimensions & Weights
Overall Length 20 in 50.8 mm
Overall Width 16 in 40.64 mm
Overall Height 18 in 45.72 mm
Shipping Dimensions 20.5 x 17 x 20.25 in
52 x 43 x 51 mm
Operating Weight 108 lb 49 kg
Shipping Weight 112 lb 51 kg
Engine Specifications
Engine Make/Model Robin EX-17
Start Method Recoil
Engine Power 5.7 HP 4.3 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
