GA6REA

GA6REA

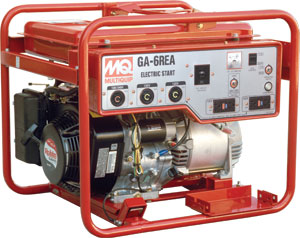

6kW, 120/240V, Subaru-Robin EH-36, Electric Start
This portable generator is your best option when the job demands a power source versatile enough to handle changing requirements. Equipped with electric start this unit is at home on the job or on service trucks.
  • Twin duplex receptacles and three twist-lock receptacles for job site versatility
  • 100% copper windings for maximum conductivity
  • Alternator design eliminates maintenance by removing brushes and slip rings
  • Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
  • Includes folding lifting bale as standard equipment
  • Powered by an 11-hp Subaru-Robin engine with low-oil shutdown and automatic idle control.




Unit Specifications
Alternator Design Brushless
Frequency 60 hz
Phase Single Phase
Voltage 120/240 V
Sound level at 30 ft 81 dBA
Fuel Tank Capacity 5 gal 19 L
Power Generation
Maximum Continuous
Watts 6000 W 5000 W
Amps at 120V 50 A 41.6 A
Amps at 240V 25 A 20.8 A
Receptacles & Circuit Breakers
Main Circuit Breaker 21 A
Number of Poles 2
1 Receptacle of Each: L5-20R 125V T-Lock 20A
L5-30R 125V T-Lock 30A
L14-30R 125/250V T-Lock 30A
2 Receptacle of Each: 5-20R 125V GFCI 20A
Dimensions & Weights
Overall Length 26.5 in 67.31 mm
Overall Width 22.25 in 56.515 mm
Overall Height 22.5 in 57.15 mm
Shipping Dimensions 27 x 24 x 26.5 in
66 x 61 x 67 mm
Operating Weight 204 lb 92.5 kg
Shipping Weight 220 lb 100 kg
Notice: Features and equipment specifications are subject to change without notice.
