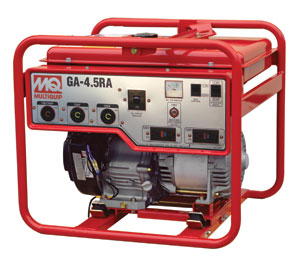

GA45RA
An outstanding value offering excellent performance at a great price. Ideal for contractors who don't require 6kW generator for everyday job requirements.
- Twin duplex receptacles and three twist-lock receptacles for job site versatility
- 100% copper windings for maximum conductivity
- Alternator design eliminates maintenance by removing brushes and slip rings
- Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
- Includes folding lifting bale as standard equipment
- Powered by a 9-hp Subaru-Robin engine with low-oil shutdown and automatic idle control
| Alternator Design | Brushless | |
| Frequency | 60 hz | |
| Phase | Single Phase | |
| Voltage | 120/240 V | |
| Sound level at 30 ft | 75 dBA | |
| Fuel Tank Capacity | 5 gal | 19 L |
| Maximum | Continuous | |
| Watts | 4500 W | 3700 W |
| Amps at 120V | 37.5 A | 30.8 A |
| Amps at 240V | 18.75 A | 15.4 A |
| Main Circuit Breaker | 15 A | |
| Number of Poles | 2 | |
| 1 Receptacle of Each: |
L5-20R 125V T-Lock 20A L5-30R 125V T-Lock 30A L14-20R 125/250V T-Lock 20A |
|
| 2 Receptacle of Each: |
5-20R 125V GFCI 20A |
|
| Overall Length | 24.5 in | 62.23 mm |
| Overall Width | 22.25 in | 56.515 mm |
| Overall Height | 21.5 in | 54.61 mm |
| Shipping Dimensions |
25 x 23 x 25 in 63.5 x 58 x 63.5 mm |
|
| Operating Weight | 159 lb | 72.1 kg |
| Shipping Weight | 173 lb | 79 kg |
| This model is equipped with a Full Power Switch | ||
| Optional Wheel Kit | UWK-97 | |
Notice: Features and equipment specifications are subject to change without notice.
