QP2TK

QP2TK

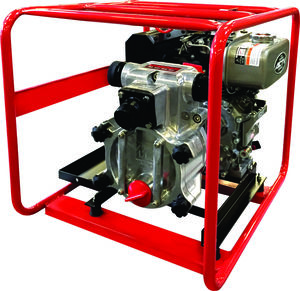

2" Suction, Trash Pump, 172 GPM, 85 ft. MAX Head; 6.0HP KUBOTA OC-60-E4 Diesel

Compact, dependable industrial centrifugal trash pump that is the professional’s choice for the toughest dewatering applications. The signature Multiquip die-cast aluminum pump-end casings and high quality internal components provide the fastest priming times and trusted operational life. The pump is powered by an electric start, KUBOTA OC60-E4 diesel engine that provides EPA/CARB compliance design. This pump is the ideal choice for dewatering operations such as: excavations, flood waters, sewage by-pass, water transfer, and barge cleaning.

  • Die-cast aluminum casings to promote fast priming times.
  • Rugged, EPA/CARB Certified 6.0HP KUBOTA diesel engine.
  • Electric start for operating convenience.
  • Engineered for 172 GPM flow rate.
  • Maximum Head - 85'.
  • Pumps water with solid content as large as 1" in diameter.
  • Dual 2" discharge ports for operational and application flexibility.
  • Silicon/carbon mechanical seal for durability.
  • Large clean-out chamber design for efficient.
  • Tubular Steel frame for transportation and pump protection.
  • #45 Ductile iron impeller and volute for abrasion resistance/long life.
  • Shock mounted pump design to minimize operating harmonics.




Unit Specifications
Suction x Discharge 2 x 2 in
51 x 51 mm
Max. Water Capacity 172 gpm 750 lpm
Max. Lift 25 ft 7.6 m
Max. Head 85 ft 29 m
Max. Pressure 37.7 psi 283 kPA
Max. Solid Intake 1 in 25 mm
Fuel Tank Capacity 1.4 Gal 3 L
Optional Wheel Kit UWKA
Dimensions & Weights
Overall Length 26.5 in 673 mm
Overall Width 23.5 in 597 mm
Overall Height 24.0 in 610 mm
Operating Weight 157 lb 71 kg
Notice: Features and equipment specifications are subject to change without notice.
