QP4TKT16

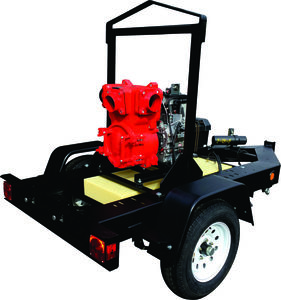

The trusted performance from the QP4TK Trash Pump mounted on a Multiquip DOT/NHSTA qualified trailer with a 16 GAL fuel capcity provides flexible transportation and quick response to demanding dewatering applications such as: excavations, emergency response to flood waters, sewage by-pass, water transfer, and barge cleaning.
- Rugged aluminum casings to promote fast priming times.
- DOT/NHTSA approved trailer – Made in the U.S.A.
- Industrial lifting bale.
- Powerful, EPA/CARB Certified 9.5HP KUBOTA diesel engine.
- Electric start for operating convenience.
- Engineered for 475 GPM flow rate.
- Maximum Head - 85'.
- Pumps water with solid content as large as 2" in diameter.
- Dual 4" discharge ports for operational and application flexibility.
- Silicon/carbon mechanical seal for durability.
- Large clean-out chamber design for efficient.
- #45 Ductile iron impeller and volute for abrasion resistance/long life.
- Shock mounted pump design to minimize operating harmonics.
- Run time (16 GAL fuel tank) @ 25 hours.
| Suction x Discharge |
4 x 4 in 100 x 100 mm |
|
| Max. Water Capacity | 475 gpm | 2000 lpm |
| Max. Lift | 25 ft | 7.6 m |
| Max. Head | 85 ft | 26 m |
| Max. Pressure | 37.7 psi | 0 kPA |
| Max. Solid Intake | 2 in | 51 mm |
| Fuel Tank Capacity | 16 GAL qt | 60.5 L |
| Notes:Trailer Model: TRLRMP16FP | ||
| Overall Length | 102 in | 2591 mm |
| Overall Width | 57 in | 1448 mm |
| Overall Height | 67 in | 1702 mm |
| Operating Weight | 735 lb | 333 kg |
| Suction Hose - NPT Thread - Male/Female | Inside Diameter | Working Pressure | Wt. | |
| HS420 | Suction Hose, 20 feet - 4" | 4" | 60 | 44 (20) |
| HS425 | Suction Hose, 25 feet - 4" | 4" | 60 | 53 (24) |
| Suction Hose - NPT Thread w/Quick Couplers - Male/Female | ||||
| HSQ420 | Suction Hose, 20 feet - 4" Quick Coupler | 4" | 60 | 46 (20) |
| HSQ425 | Suction Hose, 25 feet - 4" Quick Coupler | 4" | 60 | 55 (25) |
| Discharge Hose - NPT Thread w/ Standard Fittings | Inside Diameter | Working Pressure | Wt. | |
| HD450 | Discharge Hose, 50 feet - 4" | 4" | 60 | 57 (26) |
| Discharge Hose - NPT Thread with Quick Couplers | ||||
| HDQ450 | Discharge Hose, 50 feet - 4" Quick Coupler | 4" | 60 | 61 (28) |
| Couplers | Wt. | |||
| A400A | Coupling, 4" NPT to Q-Disconnect, 4" | 1 (.04) | ||
Notice: Features and equipment specifications are subject to change without notice.
