QP4TKT28

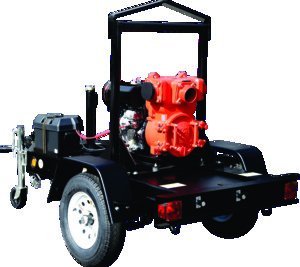

The trusted performance from the QP4TK Trash Pump mounted on a Multiquip DOT/NHSTA qualified trailer w/ 28 GAL fuel tank provides flexible transportation and quick response to demanding dewatering applications such as: excavations, emergency response to flood waters, sewage by-pass, water transfer, and barge cleaning.
- Rugged aluminum casings to promote fast priming times.
- DOT/NHTSA approved trailer – Made in the U.S.A.
- Industrial lifting bale.
- Powerful, EPA/CARB Certified 9.5HP KUBOTA diesel engine.
- Electric start for operating convenience.
- Engineered for 475 GPM flow rate.
- Maximum Head - 85'.
- Pumps water with solid content as large as 2" in diameter.
- Dual 4" discharge ports for operational and application flexibility.
- Silicon/carbon mechanical seal for durability.
- Large clean-out chamber design for efficient.
- #45 Ductile iron impeller and volute for abrasion resistance/long life.
- Shock mounted pump design to minimize operating harmonics.
- Run time (28 GAL fuel tank) @ 44 hours.
Suction x Discharge |
4 x 4 in 100 x 100 mm |
|
Max. Water Capacity | 475 gpm | 2000 lpm |
Max. Lift | 25 ft | 7.6 m |
Max. Head | 85 ft | 26 m |
Max. Pressure | 37.7 psi | 0 kPA |
Max. Solid Intake | 2 in | 51 mm |
Fuel Tank Capacity | 28 Gal | 106 L |
Notes: Utilizes Trailer: TLRLMPXFP |
Overall Length | 102 in | 2591 mm |
Overall Width | 57 in | 1448 mm |
Overall Height | 67 in | 1702 mm |
Operating Weight | 735 lb | 333 kg |
Notice: Features and equipment specifications are subject to change without notice.
